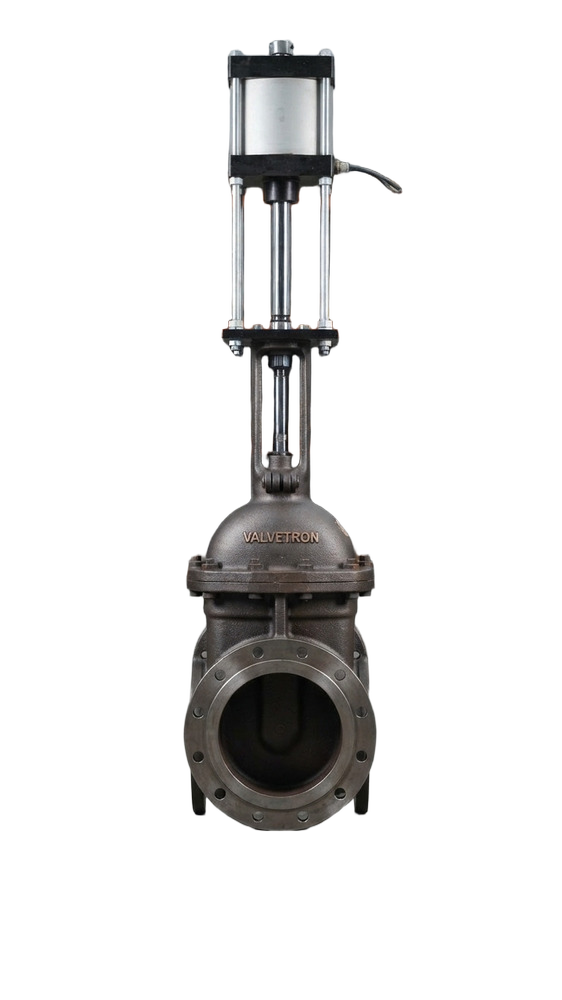

Pneumatic Gate Valve
Pneumatic Gate Valve

Pneumatic Gate Valve

MOQ : 5 Pieces

Pneumatic Gate Valve Specification

  • Features
  • Tight sealing, corrosion resistant, high cycle life, maintenance friendly
  • Material
  • Body: Cast Iron, Cast Steel, Stainless Steel; Seat/Disc: SS, Rubber, or as specified
  • Control System
  • Double acting or spring return pneumatic actuator
  • Connection Type
  • Flanged, Wafer, or Butt Weld ends
  • Valve Size
  • From 2 inch to 24 inch
  • Valve Type
  • Linear motion shut-off valve
  • Structure
  • Rising stem, gate type valve design with actuator mounting
  • Sealing
  • Metal or soft-seated as required by service
  • Voltage
  • Not applicable (operated pneumatically)
  • Application
  • Used for on/off control of flow in pipelines, ideal for water, oil, gas, and other industrial systems.
  • Type
  • Pneumatic gate valve
  • Power
  • Pneumatic (air operated)
  • Pressure
  • Class 150/300/600 or PN10 to PN40
  • Media
  • Water, oil, steam, air, chemical, and gas
  • Port Size
  • DN50 to DN600 (2 to 24)
  • Temperature
  • -10C to 180C (depending on body and seat material)
  • Disc
  • Solid or flexible wedge
  • Pin
  • Standard actuator pin configuration varies by actuator design
  • Position Indicator
  • Mechanical or electrical limit switches available
  • Actuator Supply Pressure
  • 4-7 bar (58-102 psi)
  • Manual Override
  • Available on request (hand wheel or gear box)
  • Mounting Orientation
  • Vertical (standard), Horizontal (available on request)
  • Actuator Mounting Interface
  • ISO 5211 compatible
  • Operation Time
  • 3-10 seconds (depends on valve size and actuator configuration)
  • End Connection Standard
  • ASME B16.5, DIN, or other standards as specified
  • Applicable Standard
  • API 600, ASME B16.34
  • Leakage Class
  • Class VI (soft seat), Class IV (metal seat)
  • Testing Standard
  • API 598/BS 6755
  • Ambient Temperature Range
  • -20C to 80C
  • Actuator Type
  • Double acting or single acting (spring return)
  • Body Coating
  • Epoxy powder coated or as per requirement


Pneumatic Gate Valve Trade Information

  • Minimum Order Quantity
  • 5 Pieces
  • Supply Ability
  • 500 Pieces Per Month
  • Delivery Time
  • 7 Days


About Pneumatic Gate Valve



Elevate your operations with our Pneumatic Gate Valve, engineered for breathtaking performance and superior reliability. Utilise this ace solution, available with a sizzling range of actuator types and end connections conforming to ASME B16.5, DIN, and other major standards. The valve boasts competitive pricing and is designed for rapid response-operation time as low as 3 seconds. With Class VI soft seat and Class IV metal seat leakage standards, epoxy powder-coated protection, and easy ISO 5211 actuator mounting, this top-tier valve is your go-to for robust, maintenance-friendly shut-off needs.

Pneumatic Gate Valve: Ace Features and Versatile Applications

This pneumatic gate valve excels with features like tight sealing, corrosion resistance, and high cycle life, making it ideal for demanding industrial scenarios. Use type ranges from on/off control in water, oil, gas, and steam pipelines. With rising stem gate design, selectable sealing-metal or soft-and adaptability to flanged, wafer, or butt-weld ends, it offers broad utility in chemical, utility, and process industries, suited for both vertical and optional horizontal mounting configurations.


Sample Availability and Export Excellence in Pneumatic Gate Valves

Pneumatic gate valve samples can be provided for evaluation across domestic markets and international clients. Main export markets include Asia, Africa, and Europe, with all shipped goods dispatched efficiently from major Indian FOB ports. Benefit from competitive rate structures and swift sample access to assess suitability before major orders, ensuring you gain supreme value from the previewed product quality before committing to large-scale procurement.


FAQ's of Pneumatic Gate Valve:


Q: How does the actuator type affect the operation of the pneumatic gate valve?

A: The actuator type, available as double acting or single acting (spring return), influences the control and reliability of valve automation, allowing selection based on application needs and desired fail-safe positions.

Q: What are the primary benefits of using this pneumatic gate valve in industrial systems?

A: Key benefits include rapid operation, tight sealing, corrosion resistance, and compatibility with multiple pipeline standards, making it ideal for water, oil, gas, and chemical applications in robust industrial environments.

Q: Where can the valve be mounted, and are there orientation options?

A: The standard mounting orientation is vertical, but horizontal installation is available upon request to suit varied system designs and space constraints.

Q: What is the process for requesting a sample of the pneumatic gate valve?

A: Clients can request samples through our sales team, specifying desired size and configuration; samples are typically dispatched from designated Indian FOB ports based on agreed shipping terms.

Q: Which testing and leakage standards does this gate valve comply with?

A: The valve is rigorously tested as per API 598/BS 6755 standards, and offers Class VI (soft seat) and Class IV (metal seat) leakage ratings, ensuring top-tier performance under industry-accepted protocols.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Gate Valves Category

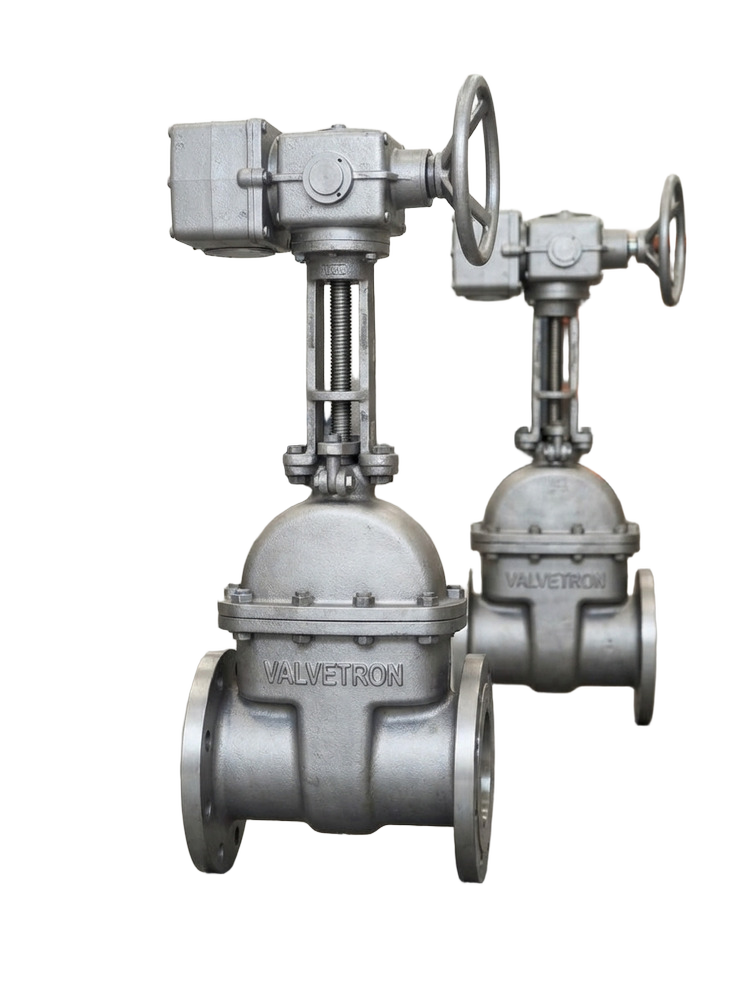

Gear Operated Gate Valve

Gear Operated Gate Valve

Minimum Order Quantity : 5 Pieces

Type : Gear Operated Gate Valve

Port Size : 2 inches to 48 inches

Application : Industrial pipeline systems, water treatment plants, oil & gas industries, power plants

Connection Type : Flanged Ends

Valve Size : DN50 to DN1200

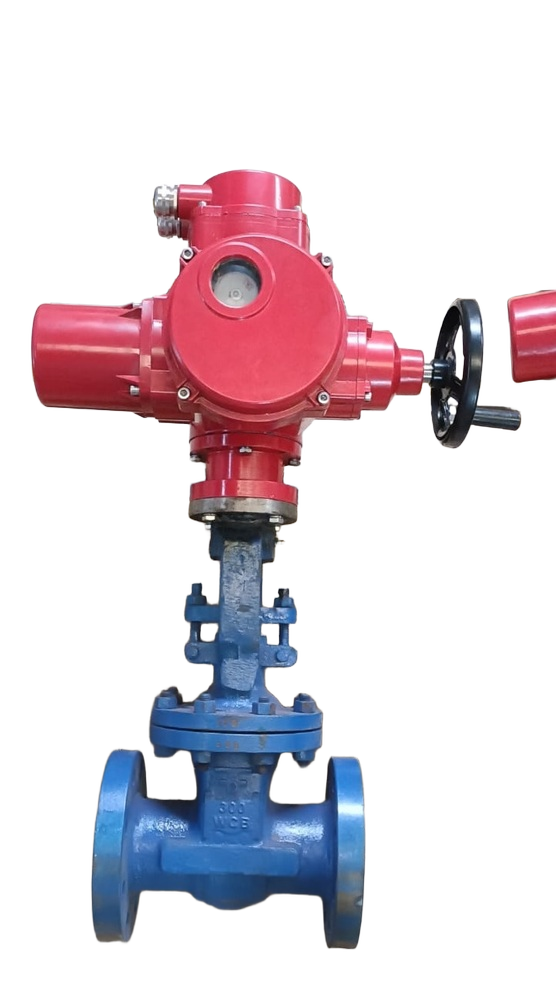

Motorised Gate Valve

Motorised Gate Valve

Minimum Order Quantity : 2 Pieces

Type : Motorised Gate Valve

Port Size : DN50 to DN600

Application : Industrial automation, fluid control, water treatment plants, oil & gas pipelines

Connection Type : Flanged ends (ANSI, DIN, JIS standards)

Valve Size : 2 inch to 24 inch

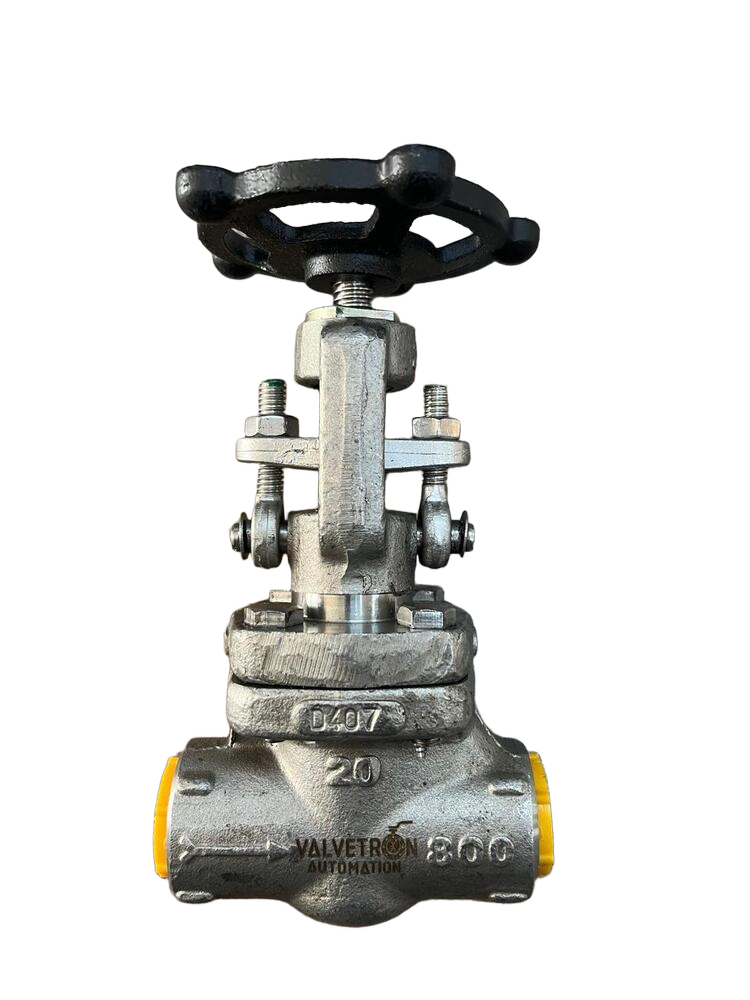

Forged Gate Valve

Forged Gate Valve

Minimum Order Quantity : 5 Pieces

Type : Gate Valve

Port Size : Available from 1/2 to 2 (DN15 to DN50)

Application : Oil & Gas, Petrochemical, Power Plant, General Industrial Use

Connection Type : Socket Weld, Screwed, Flanged End

Valve Size : 1/2 inch to 2 inch (DN15DN50)

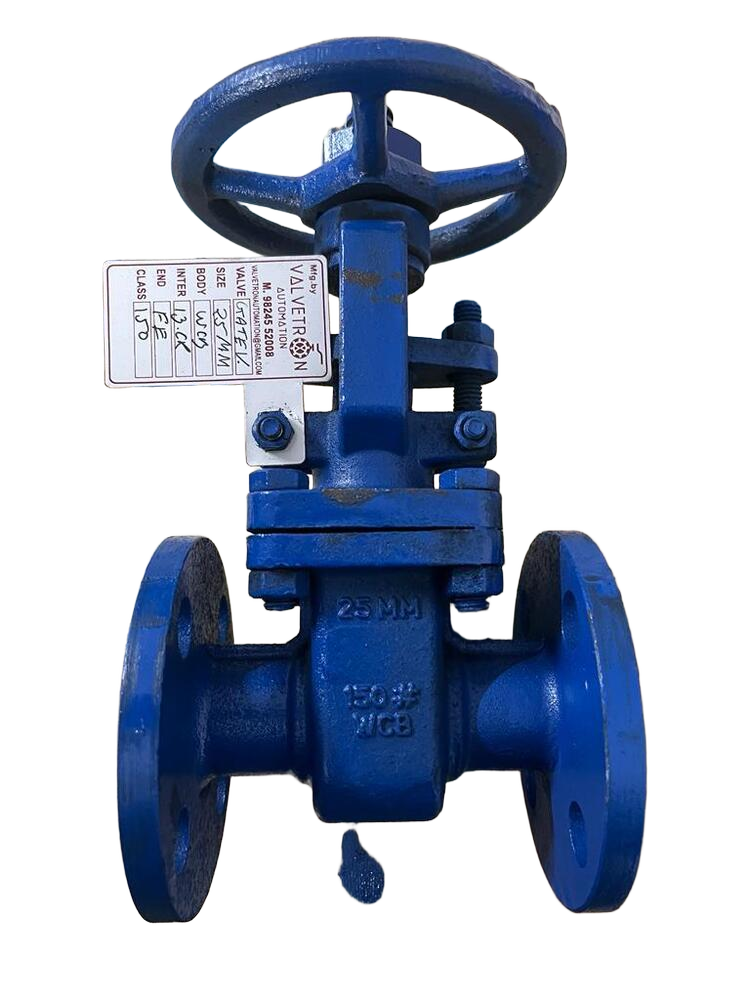

Wheel Operated Gate Valve
