Pinch Valves

Introducing our high-performance Pinch Valves, designed and manufactured by an exceptional B2B manufacturer, supplier, and exporter with over 8 years of industry experience, renowned for delivering prime solutions at the best price across All India. Our top-notch product lineup includes Gear Operated Pinch Valve, Motorised Pinch Valve, Pneumatic Pinch Valve, and Wheel Operated Pinch Valve, featuring the newest releases and inclusive of ongoing sale offers to meet diverse industrial requirements. These pinch valves stand out in the market with superior durability, prime corrosion resistance, exceptional sealing capability, easy maintenance, and reliable performance even in the harshest environments, ensuring maximum operational efficiency. Whether you need precise flow control in chemical, mining, food processing, water treatment, or pharmaceutical applications, our pinch valves provide the best in safety, efficiency, and cost-effectiveness, making them the preferred choice for businesses seeking top-tier quality at unbeatable value.

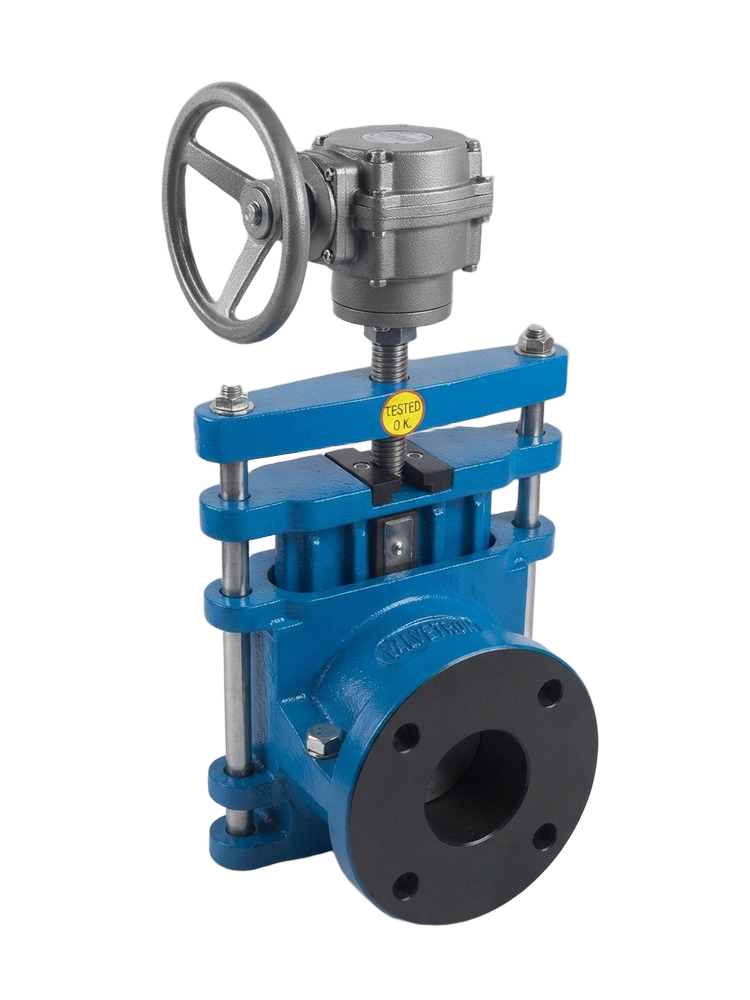

Gear Operated Pinch Valve

MOQ : 5 Pieces

  • Application
  • Suitable for slurry, abrasive, corrosive, and fibrous media control in industries like mining, chemical, water treatment, and power plants
  • Connection Type
  • Flanged ends, ANSI/DIN/BS standards
  • Control System
  • Manual Gear Operation (optional electrical/pneumatic actuation)
  • Disc
  • Not applicable; sleeve acts as the sealing element
  • Features
  • Non-clogging design, corrosion and abrasion resistance, easy sleeve replacement, bubble-tight shut-off
  • Material
  • Body: Cast Iron/Ductile Iron/Carbon Steel/Stainless Steel; Sleeve: Natural/Synthetic Rubber, EPDM, Neoprene, Butyl, etc.
  • Media
  • Other, Slurries, liquids, powders, semi-solids, gases
  • Pin
  • Stainless Steel Pin for stem connection
  • Port Size
  • 25 mm to 500 mm (custom sizes available)
  • Power
  • Other, Manual Gear Operated
  • Pressure
  • Other, Up to 10 Bar (150 PSI), higher on request
  • Sealing
  • Full bore elastomer sleeve ensures tight shut-off
  • Structure
  • Other, Body, sleeve, gland, top cover, handwheel, gear operator mechanism
  • Temperature
  • Up to 120C (depending on sleeve material)
  • Type
  • Gear Operated Pinch Valve
  • Valve Size
  • DN25 to DN500
  • Valve Type
  • Pinch Valve
  • Voltage
  • Not Applicable (manual operation)

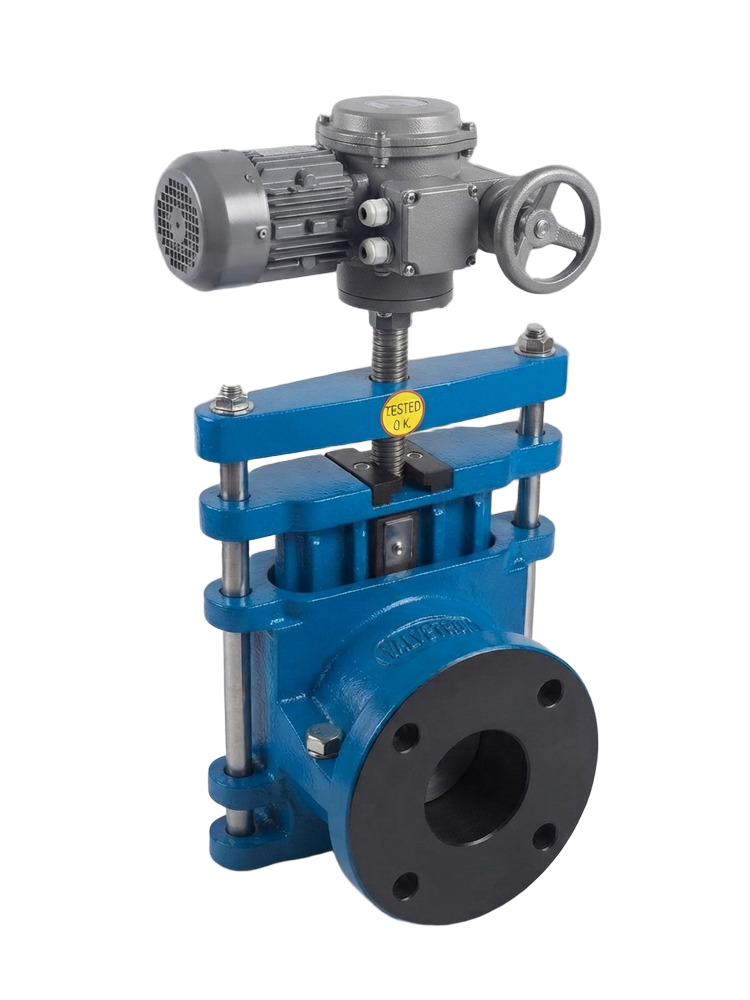

Motorised Pinch Valve

MOQ : 5 Pieces

  • Application
  • Industrial fluid control systems, slurry and abrasive material handling
  • Connection Type
  • Flanged ends to ANSI/DIN standards
  • Control System
  • Electric actuator with manual override
  • Disc
  • Not applicable (Design includes full-bore elastomer sleeve instead of disc)
  • Features
  • Maintenance-free, full port design, robust for abrasive media, leak-proof operation
  • Material
  • Body: Cast Iron, Ductile Iron or Stainless Steel; Sleeve: Natural Rubber, EPDM, or custom elastomers
  • Media
  • Other, Liquids, slurries, powders, granular materials
  • Pin
  • Corrosion-resistant stainless steel pin
  • Port Size
  • DN50 to DN400 (2 to 16)
  • Power
  • Other, Electric motor driven
  • Pressure
  • Other, Up to 10 bar (standard range)
  • Sealing
  • Flexible and elastic rubber sleeve
  • Structure
  • Other, Split-body with bolted construction
  • Temperature
  • -10C to 80C (standard, higher on request)
  • Type
  • Motorised pinch valve
  • Valve Size
  • Range from 2 up to 16 (DN50-DN400)
  • Valve Type
  • Pinch Valve
  • Voltage
  • 220V/380V AC (custom options available)

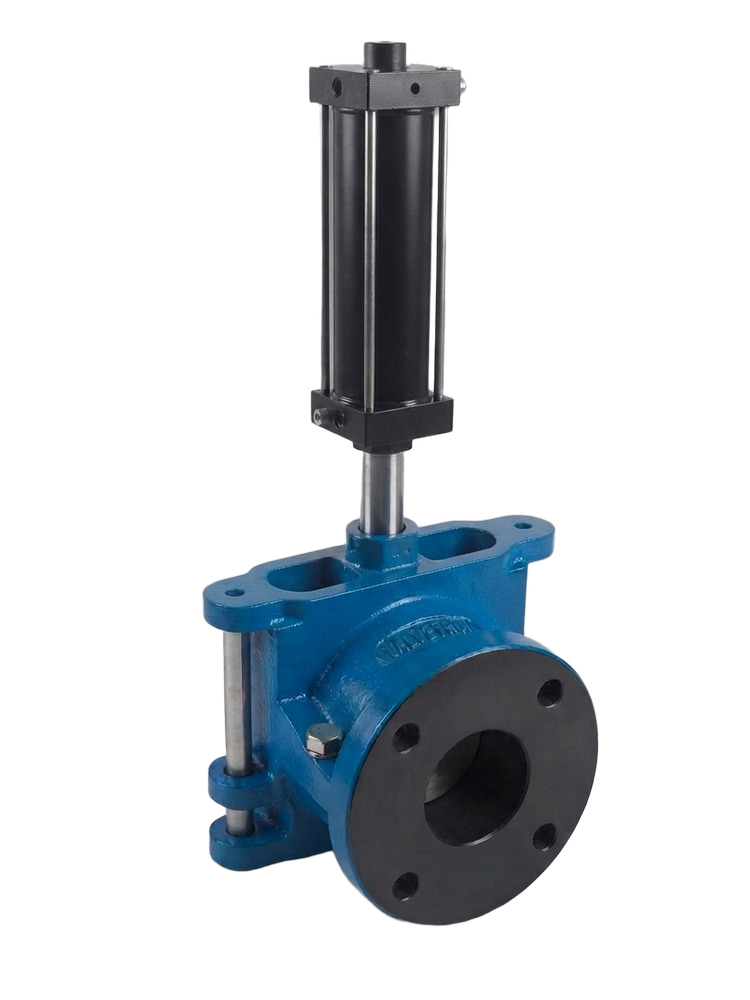

Pneumatic Pinch Valve

MOQ : 5 Pieces

  • Application
  • Suitable for handling abrasive, corrosive, and fibrous materials, including slurries, powders, and liquids in industries such as chemical, food processing, mining, and wastewater treatment.
  • Connection Type
  • Flanged, threaded, or clamp connections
  • Control System
  • Pneumatic actuator
  • Disc
  • Not applicable (pinch valves use a sleeve mechanism, not a disc)
  • Features
  • No clogging, full bore flow, maintenance-friendly, corrosion-resistant, leak-tight shutoff, fast actuation
  • Material
  • Cast iron, ductile iron, aluminium, stainless steel body options; internal sleeve of rubber/elastomer
  • Media
  • Other, Liquids, slurries, powders, abrasive and corrosive fluids
  • Pin
  • Stainless steel/Alloy steel (subject to product variant)
  • Port Size
  • DN25 to DN300 (can be customized)
  • Power
  • Other, Pneumatic (air actuated)
  • Pressure
  • Other, Up to 6 bar (standard); higher pressure ratings available based on request
  • Sealing
  • Elastomer sleeve (high durability rubber sleeve, EPDM/Nitrile/Silicone/Neoprene/other variants available)
  • Structure
  • Other, Pinch Valve with pneumatic cylinder actuator
  • Temperature
  • -20C to 80C (standard; higher ranges available on request)
  • Type
  • Pneumatic Pinch Valve
  • Valve Size
  • From 1 (25 mm) up to 12 (300 mm)
  • Valve Type
  • On/Off, control type
  • Voltage
  • Not applicable (pneumatically operated)

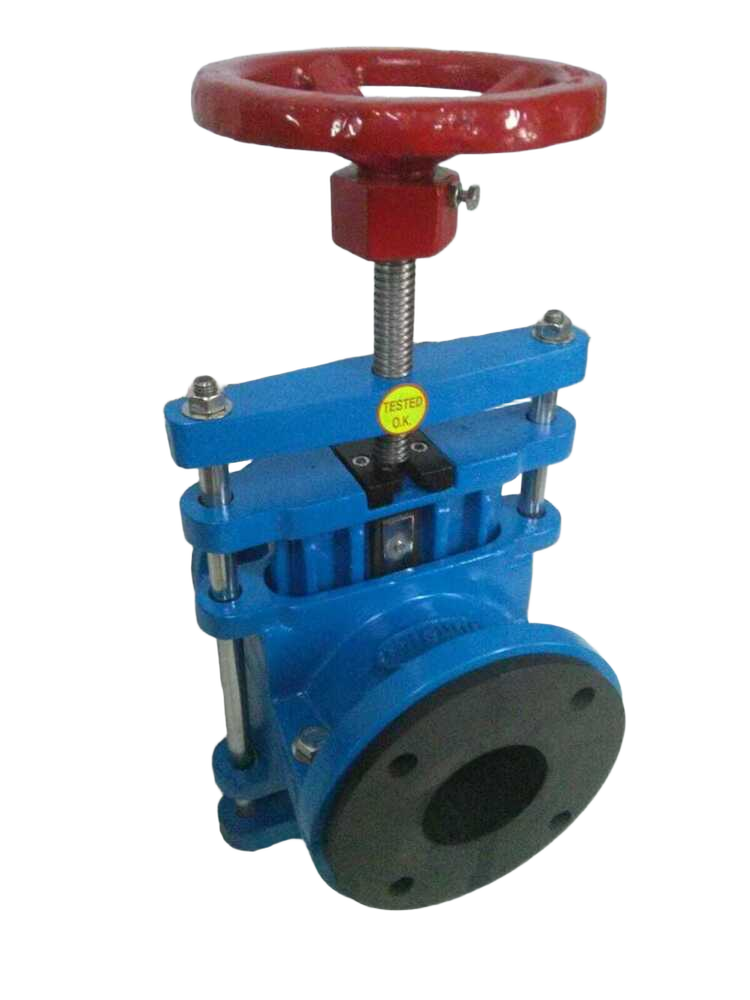

Wheel Operated Pinch Valve

MOQ : 5 Pieces

  • Application
  • Suitable for on/off and throttling service of slurries, granular materials, and corrosive fluids
  • Connection Type
  • Flanged Ends
  • Control System
  • Handwheel driven mechanical actuator
  • Disc
  • No disc (Sleeve provides shutoff)
  • Features
  • Full bore, Low maintenance, Easy sleeve replacement, Isolation and regulation capability
  • Material
  • Cast Iron / Ductile Iron Body, Stainless Steel Spindle
  • Media
  • Other, Slurry, Water, Air, Gases, Aggressive and Corrosive Fluids
  • Pin
  • Stainless Steel Pin
  • Port Size
  • Available in sizes from 25mm to 300mm
  • Power
  • Other, Manual Wheel Operated
  • Pressure
  • Other, Up to 10 bar (Depends on make and type of valve)
  • Sealing
  • Rubber Sleeve (EPDM, Neoprene, Natural Rubber options)
  • Structure
  • Other, Bolted Body with Replaceable Sleeve
  • Temperature
  • Up to 80C (Sleeve dependent)
  • Type
  • Pinch Valve
  • Valve Size
  • 25mm to 300mm (DN25-DN300)
  • Valve Type
  • Pinch Type, Linear Movement
  • Voltage
  • Not Applicable (Manual operation)
