Ball Valves

• Application
• Flow control and safety

• Connection Type
• Flanged End

• Control System
• Manual lever, spring operated

• Disc
• Stainless Steel

• Features
• Automatic spring handle close

• Material
• WCB (Carbon Steel)

• Media
• Other

• Pin
• Spring Return Mechanism

• Port Size
• 1 inch

• Power
• Manual

• Pressure
• Other, Standard industrial pressure

• Sealing
• PTFE/Gasket

• Structure
• Other, Ball type

• Temperature
• Suitable for industrial range

• Type

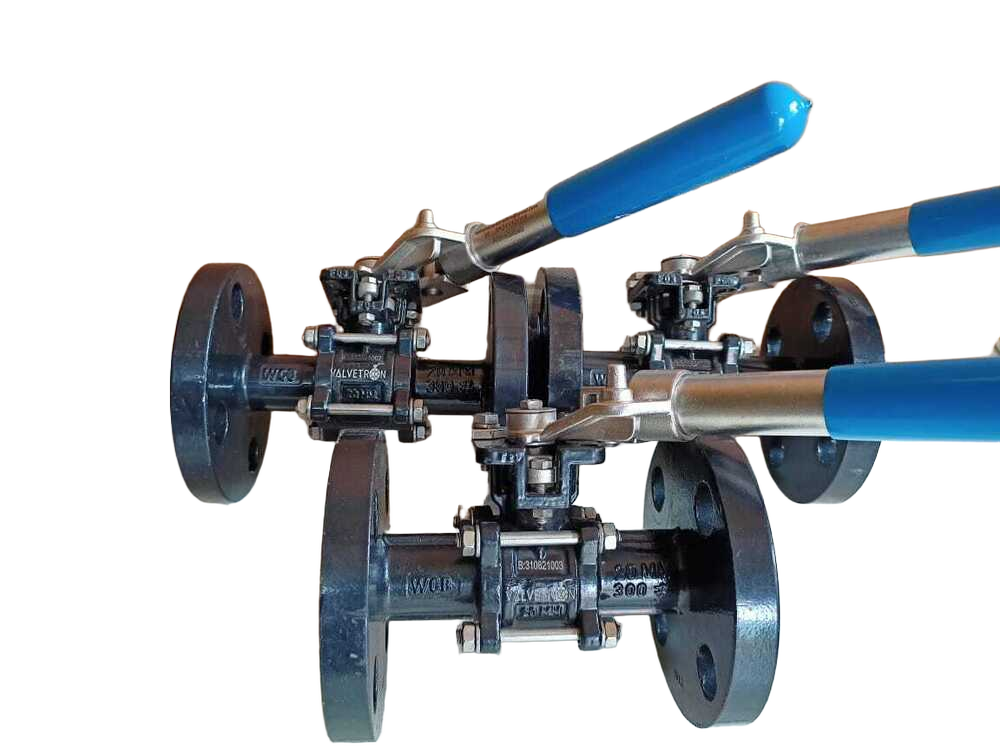

• Deadman Ball Valve

• Valve Size
• 1 Inch

• Valve Type
• Spring Return

• Application
• Industrial pipelines, oil and gas, petrochemical, water treatment

• Connection Type
• Flanged, screwed (NPT/BSP), socket weld

• Control System
• Pneumatic actuator operated

• Disc
• Forged steel ball

• Features
• Compact design, anti-blowout stem, corrosion-resistant, fire-safe design

• Material
• Carbon steel, stainless steel (ASTM A105, F304, F316, etc.)

• Media
• Other, Water, oil, gas, steam, chemicals

• Pin
• SS locking pin for stem security

• Port Size
• 1/2 to 6 (Customizable)

• Power
• Pneumatic

• Pressure
• Other, Class 150/300/600

• Sealing
• PTFE/Graphite seals

• Structure
• Other, Forged body, two/three piece construction

• Temperature
• -20C to 200C

• Type

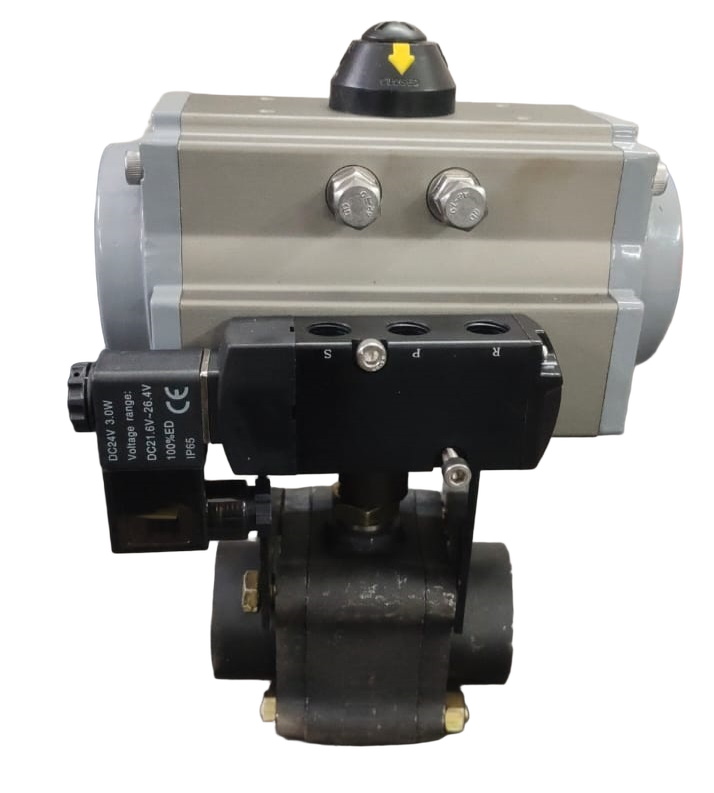

• Forged ball valve

• Valve Size
• 15 mm to 150 mm

• Valve Type
• Ball Valve

• Voltage
• Not applicable for pneumatic actuator

• Application
• Industrial flow control, oil & gas, water treatment, chemical plants

• Connection Type
• Flanged (ANSI/ASME/DIN/JIS)

• Control System
• Manual Gear Operator

• Disc
• Ball Type, Stainless Steel

• Features
• Blowout proof stem, Fire safe design, ISO mounting pad, Antistatic device

• Material
• Stainless Steel / Carbon Steel / Alloy Steel

• Media
• Other, Water, Oil, Gas, Chemicals, Steam

• Pin
• Stainless Steel (as used for ball support)

• Port Size
• Full Port or Reduced Port

• Power
• Other, Manual (Gear Operated)

• Pressure
• Other, Class 150# to 600#

• Sealing
• PTFE/R-PTFE/Viton/Metal to metal

• Structure
• Other, Two-piece/Three-piece design, Flanged ends

• Temperature
• -29C to 200C (depending on seat and seal material)

• Type

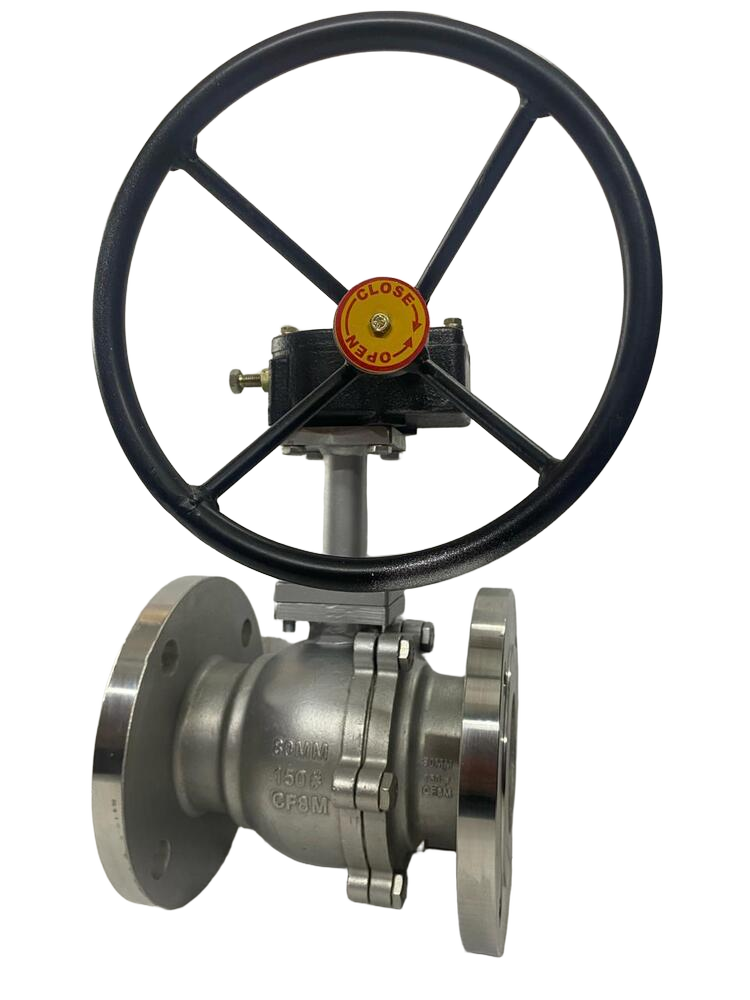

• Gear Operated Ball Valve

• Valve Size
• 2 inch to 24 inch (DN50 to DN600)

• Valve Type
• Ball Valve

• Voltage
• Not Applicable (Manual)

• Application
• Industrial flow control, Oil & Gas, Chemical industry, Water Supply

• Connection Type
• Flanged / Screwed / Socket Weld ends

• Control System
• Manual Lever with mechanical stop

• Disc
• SS or as per process requirement

• Features
• Blow-out proof stem, Fire safe design, Antistatic device, Lockable handle

• Material
• Carbon Steel / Stainless Steel / Alloy Steel

• Media
• Other, Water, Gas, Oil, Air, Steam

• Pin
• Stainless Steel Pin

• Port Size
• Full Bore, Standard Bore (custom as per requirements)

• Power
• Manual

• Pressure
• Other, Class 150/300/600 or as specified

• Sealing
• PTFE / Soft or Metal Seat

• Structure
• Other, Two-piece or Three-piece body

• Temperature
• Up to 180C (varies by seat material)

• Type
• Lever Operated Ball Valve

• Valve Size
• 12 - 12 (15mm - 300mm)

• Valve Type
• Ball Valve

• Voltage
• N/A (Manual operation)

• Application
• Automated fluid control in industrial pipelines

• Connection Type
• Flanged, Screwed, or Socket Weld

• Control System
• Electrical Actuation with manual override

• Disc
• High tensile disc, chrome/stainless finish

• Features
• On-Off service, quarter-turn rotary action, visual position indicator

• Material
• Body: Cast Iron, SS304, SS316; Ball: Stainless Steel

• Media
• Other, Water, Oil, Gas, Chemical, Air

• Pin
• Multi-pin electrical connection

• Port Size
• 15 mm to 300 mm (1/2 to 12)

• Power
• Other, Electric motor operated

• Pressure
• Other, Up to PN16 (16 bar) or as specified

• Sealing
• PTFE or reinforced Teflon seats

• Structure
• Other, 2/3-piece body with actuator mounted

• Temperature
• -10C to 80C (standard); higher on request

• Type

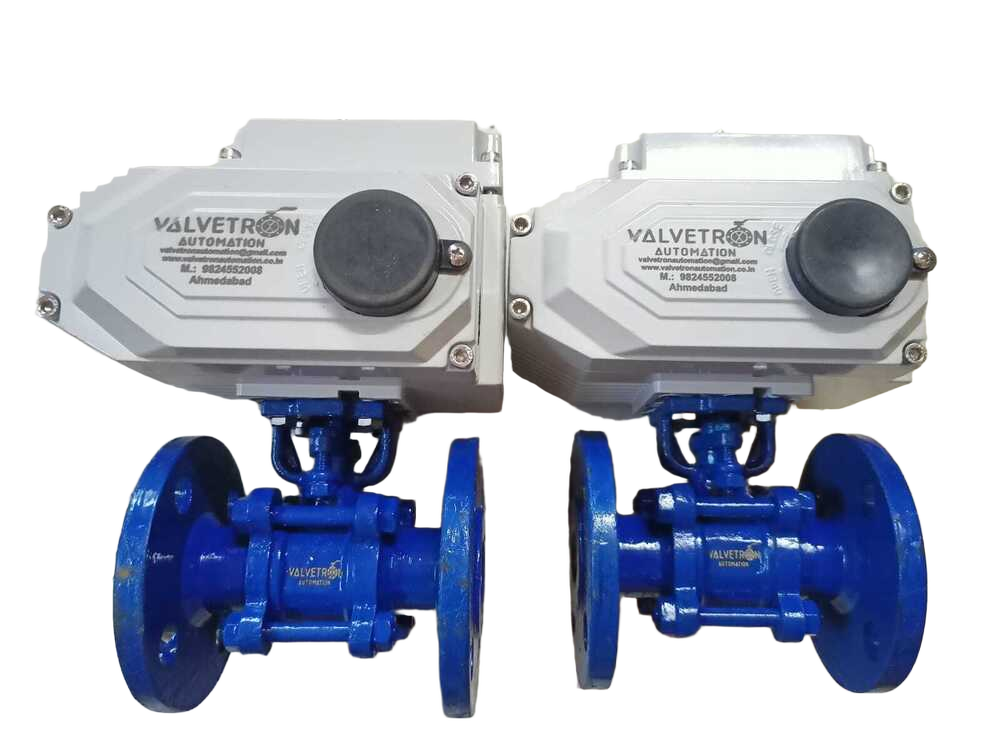

• Motorized Ball Valve

• Valve Size
• 1/2 inch to 12 inch

• Valve Type
• Floating/Trunnion mounted ball (as per size)

• Voltage
• Available in 24V, 110V, 220V AC/DC options

• Application
• Industrial automation, fluid control systems, chemical processing, water treatment, oil & gas applications

• Connection Type
• Flanged/Threaded/Welded Ends

• Control System
• Pneumatically operated with manual override (option available)

• Disc
• Ball (SS304/SS316/CS/Alloy)

• Features
• Double acting & spring return actuator, visual position indicator, compact design, ISO mounting

• Material
• Stainless Steel, Carbon Steel, Alloy Steel, PTFE, Brass

• Media
• Other, Air, Water, Gas, Oil, Steam, Chemicals

• Pin
• 2/3 Way as per design

• Port Size
• 1/2 to 12 (customizable)

• Power
• Pneumatic

• Pressure
• Other, Up to 16 Bar (varies by model)

• Sealing
• Soft Seated/ Metal Seated

• Structure
• Other, Floating Ball Valve Design

• Temperature
• -20C to 180C (varies with seat material)

• Type

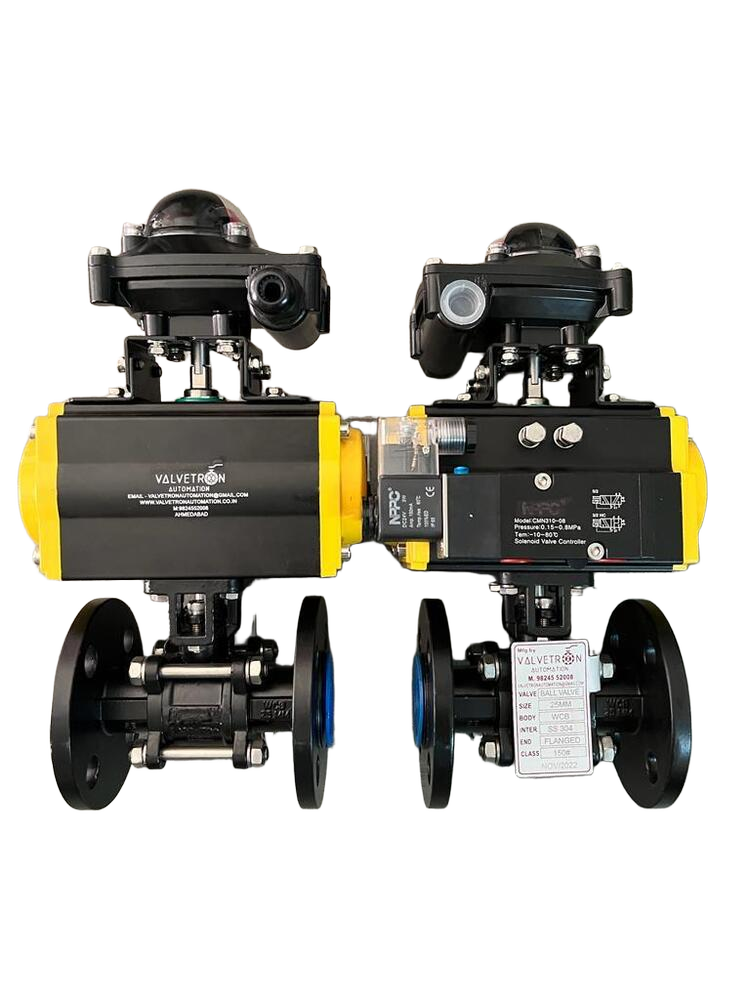

• Pneumatic Actuated Ball Valve

• Valve Size
• DN15 to DN300

• Valve Type
• 2 Piece/3 Piece Ball Valve

• Voltage
• Not applicable (Pneumatic)
