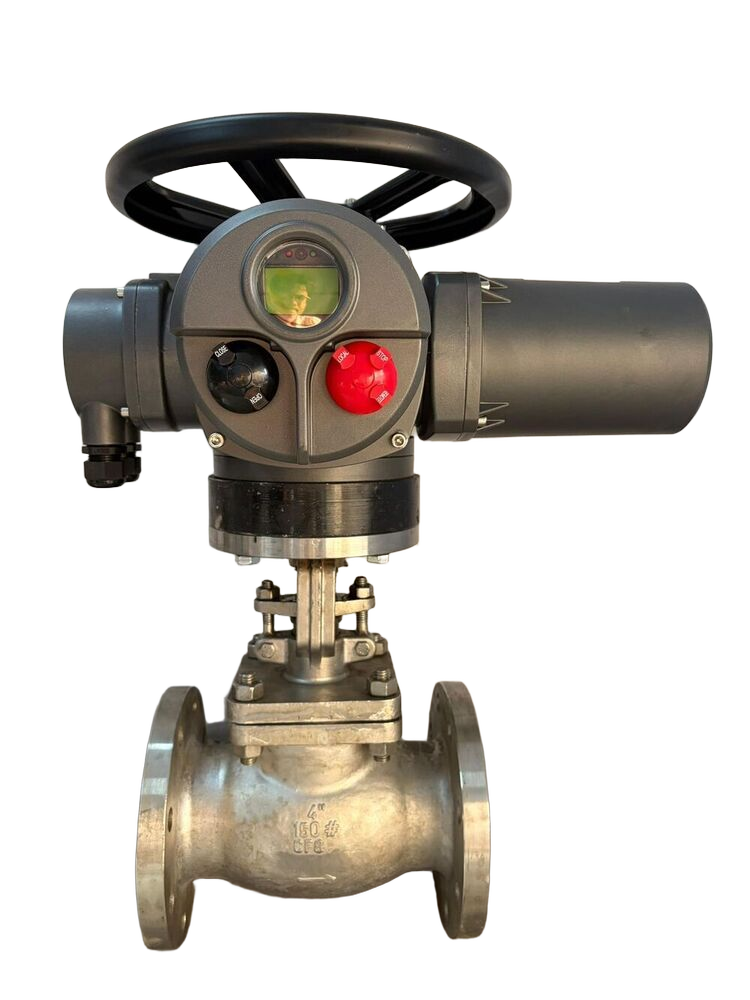

Motorised Control Valve
Motorised Control Valve

Motorised Control Valve

MOQ : 1 Piece

Motorised Control Valve Specification

  • Control System
  • 4-20 mA or 0-10V analog control, on/off or modulating control
  • Material
  • Cast iron, WCB, Stainless steel
  • Valve Type
  • Globe/On-Off/Modulating type
  • Valve Size
  • 25 mm to 150 mm (other sizes available)
  • Features
  • Position indicator, manual override, weatherproof actuator housing
  • Connection Type
  • Flanged ends (as per ASME/ANSI/DIN)
  • Structure
  • Flanged globe valve body with top-mounted electric actuator
  • Voltage
  • 220V AC / 24V DC (other options available on request)
  • Application
  • Industrial automation, process control, fluid handling
  • Sealing
  • PTFE/Viton gland packing
  • Type
  • Motorised control valve, actuator-driven
  • Power
  • Electric motor operated
  • Pressure
  • Up to 16 bar (higher rating possible depending on design)
  • Media
  • Water, gas, oil, steam, chemicals
  • Port Size
  • 1 inch to 6 inch
  • Temperature
  • -10C to 120C (standard range, higher temperature options available)
  • Disc
  • Stainless steel
  • Pin
  • Multi-pin connector supported (typically 3/5/7-pin, as required)
  • Actuator Type
  • Electric rotary/linear actuator
  • Wiring Entry
  • Cable gland with terminal box
  • Enclosure Protection
  • IP65/IP67 weatherproof enclosure
  • Operation Signal
  • Remote electrical signal, manual override
  • Leakage Class
  • Class IV-VI (as per IEC/ANSI)
  • Cycle Time
  • 15-30 seconds (depending on size & actuator)
  • Flow Characteristic
  • Linear or Equal Percentage
  • Mounting Orientation
  • Vertical standard, horizontal optional
  • Duty Cycle
  • S1 continuous
  • Position Feedback
  • Potentiometer or digital feedback
  • Limit Switches
  • Open/close adjustable switches
  • Body Finish
  • Epoxy coated or sandblasted
  • Ambient Temperature
  • -10C to 55C


Motorised Control Valve Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 500 Pieces Per Month
  • Delivery Time
  • 7 Days


About Motorised Control Valve



Shop now for our superlative Motorised Control Valve featuring a lavish weatherproof IP65/IP67 enclosure, perfect for demanding industrial environments. This enviable actuator-driven valve, available for a limited time, assures dependable modulation, standout leakage protection (Class IV-VI), and rapid cycle times of 15-30 seconds. Choose from electric rotary or linear actuation, multiple feedback options, and competitive mounting orientations. With high-quality PTFE/Viton sealing and a robust epoxy-coated or sandblasted finish, this special product ensures years of faultless operation for water, gas, oil, steam, and chemical applications.

Exceptional Features and Advantages of the Motorised Control Valve

Our Motorised Control Valve stands out for its reliable position feedback system, continuous S1 duty cycle, and robust construction in cast iron, WCB, or stainless steel. Lavishly engineered for linear or equal percentage flow, it supports analog control and multiple-actuator types. This product excels in industrial automation, process control, and fluid handling, operating efficiently even in harsh environments and with a range of media including water, oil, gas, steam, and chemicals.


Sample Policy and Delivery Details for Motorised Control Valve

Samples of our Motorised Control Valve are available for special evaluation-simply request to experience its enviable performance firsthand. Standard shipments are usually dispatched within 7-14 days, ensuring minimal waiting time. Our sample policy reduces your expenditure risk, providing clarity and confidence. Take advantage of this limited time offer to test our valve in your process before making your full-scale investment.


FAQ's of Motorised Control Valve:


Q: How is the Motorised Control Valve installed and mounted?

A: The valve is designed for vertical installation as standard, with an optional horizontal mounting available as per site requirements. Detailed installation instructions are provided with every shipment.

Q: What are the benefits of choosing an IP65/IP67 weatherproof enclosure?

A: An IP65/IP67 enclosure ensures the actuator and controls are lavishly protected against dust, water jets, and temporary immersion, making it ideal for harsh industrial and outdoor environments.

Q: When can I expect my Motorised Control Valve order to be dispatched?

A: For most order quantities and standard sizes, dispatch typically occurs within 7-14 days of order confirmation, including sample orders. Custom requests may require additional time.

Q: What is the process to request a valve sample for evaluation?

A: Requesting a sample is simple-contact our sales team with your specific application details and preferred specifications, and we will coordinate prompt shipment upon approval.

Q: How does the valve provide position feedback and control?

A: The valve offers both potentiometric and digital feedback, with support for analog command signals (4-20 mA or 0-10V), allowing precise modulating or on/off control to suit various automation needs.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Control Valves Category

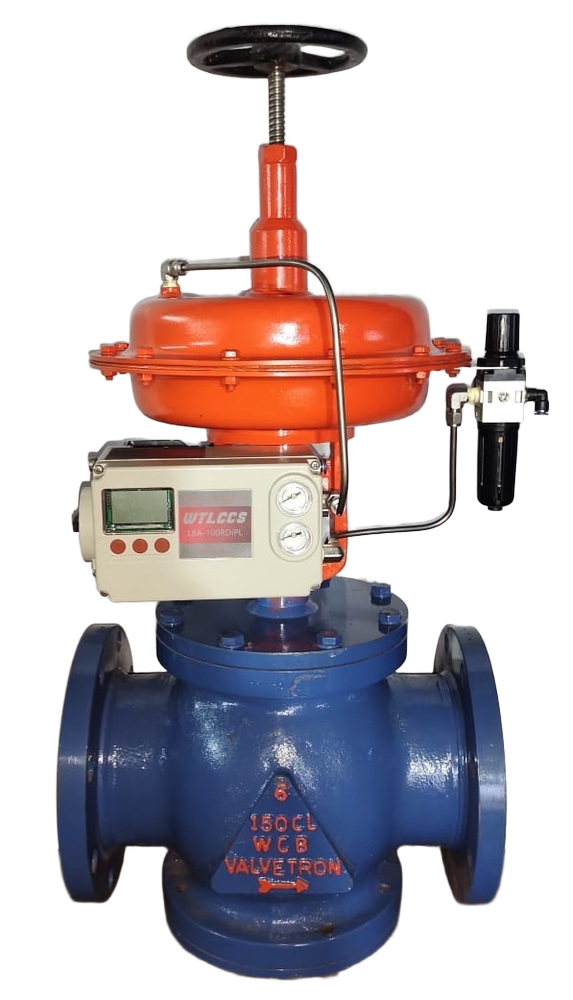

Diaphragm Control Valve

Diaphragm Control Valve

Price 1400 INR / Piece

Minimum Order Quantity : 10 Pieces

Pressure : High Pressure

Temperature : Medium/high temp resistant

Connection Type : Flanged ends

Sealing : Flexible diaphragm

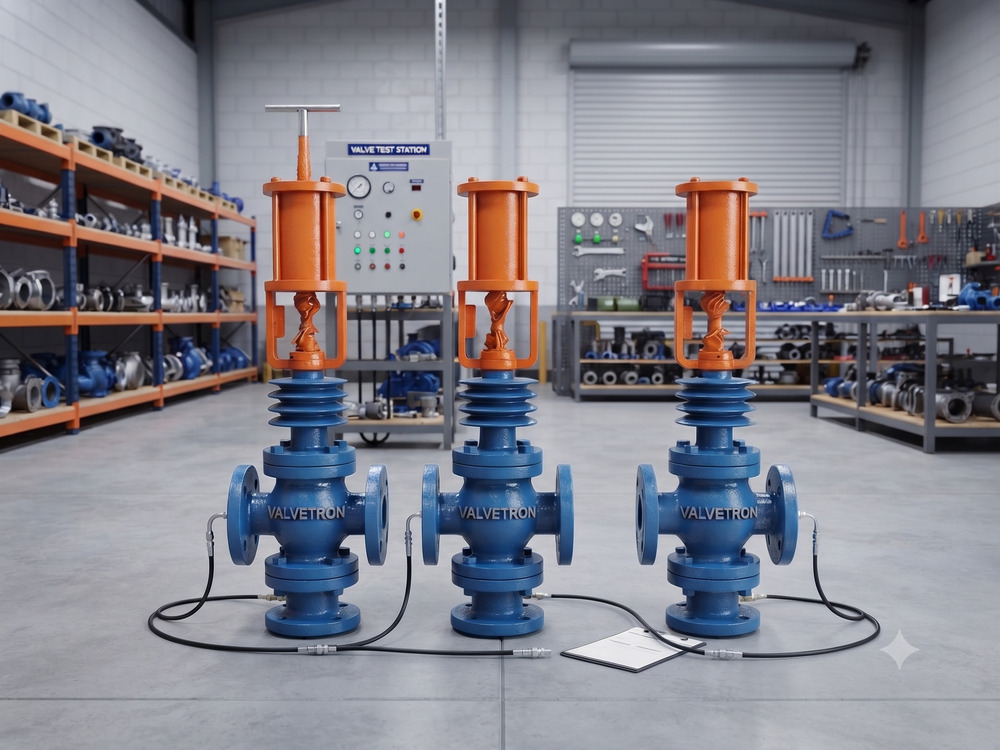

Pneumatic Cylinder Control Valve
