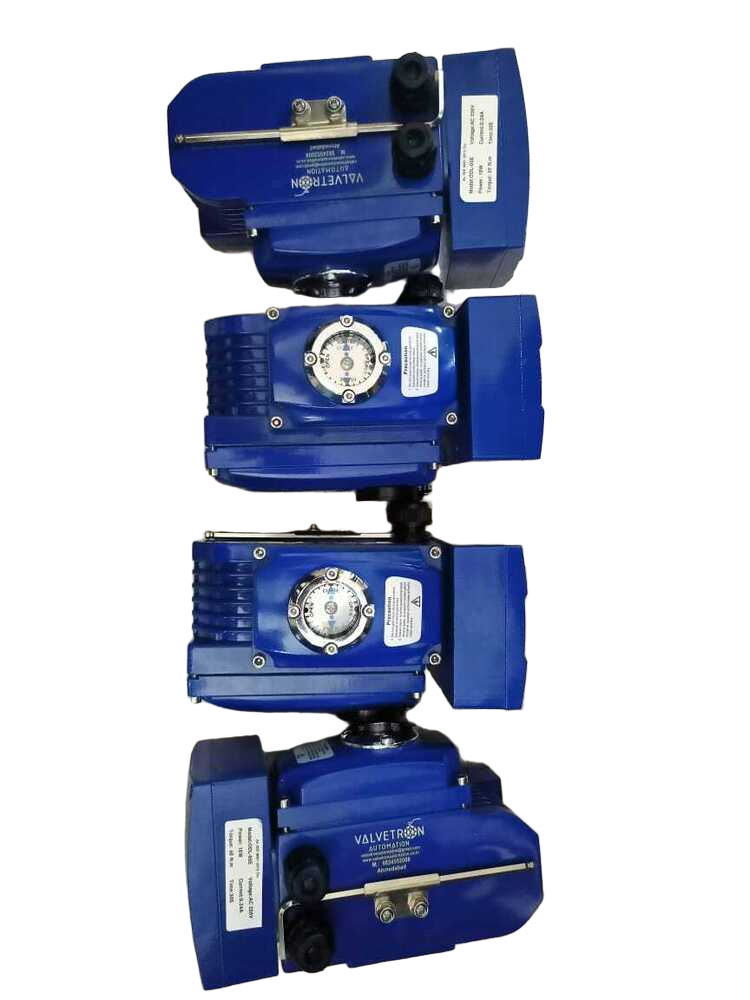

Electric Actuators
Electric Actuators

Electric Actuators

MOQ : 1 Piece

Electric Actuators Specification

  • Material
  • Aluminum alloy, powder coated
  • Valve Type
  • Ball, butterfly, plug valves
  • Valve Size
  • 25 mm to 200 mm
  • Control System
  • On/Off or modulating control capable
  • Features
  • Manual override, position indicator, corrosion-resistant
  • Connection Type
  • Flanged, threaded, or ISO-standard mounting
  • Application
  • Industrial automation, valve operation, HVAC, water treatment plants
  • Voltage
  • 24V/110V/230V AC or DC options
  • Structure
  • Compact, enclosed actuator housing
  • Sealing
  • IP67 (dust and waterproof enclosure)
  • Type
  • Rotary type electric actuator
  • Power
  • Electric, typically ranges 24V to 230V AC/DC
  • Pressure
  • Supports standard valve ratings up to 16 bar
  • Media
  • Compatible with water, gas, air, and oil
  • Port Size
  • Suitable for valves 1 to 8 (custom sizes available)
  • Temperature
  • -10C to 70C (operating range)
  • Disc
  • Suitable for different valve disc types
  • Pin
  • 3-pin or 5-pin depending on control wiring requirements
  • Indicator Type
  • Visual position indicator on cover
  • Output Torque
  • 10 Nm to 2000 Nm (varies by model)
  • Enclosure Material
  • Die-cast aluminum with epoxy coating
  • Limit Switches
  • Included for open/close indication
  • Signal Input
  • 4-20 mA/0-10V analog or digital compatible
  • Operating Frequency
  • 50/60 Hz for AC models
  • Mounting Standard
  • ISO 5211 mounting base
  • Motor Protection
  • Thermal overload protection included
  • Duty Cycle
  • 75% continuous duty
  • Ambient Humidity
  • Up to 95% non-condensing


Electric Actuators Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 100 Pieces Per Month
  • Delivery Time
  • 7 Days


About Electric Actuators



Experience fresh innovation with our majestic Electric Actuators, engineered for uncommon performance and valorous reliability in industrial automation. Designed for seamless operation with output torques from 10 Nm up to 2000 Nm, they operate continuously at a 75% duty cycle and adapt to a variety of signals-4-20mA, 0-10V, analog, or digital. Each unit features a robust die-cast aluminum enclosure (IP67 rated), thermal motor protection, and a visual position indicator. Order today to secure a special rate and empower your operations with advanced, corrosion-resistant technology-ideal for ball, butterfly, and plug valve applications.

Majestic Electric Actuators: Used For, Features & Competitive Advantages

Electric actuators are extensively used for industrial automation, valve operation, HVAC, and water treatment plants. Distinguished by a compact, corrosion-resistant design, these actuators offer superior sealing (IP67), robust manual override, and precise position indication. The uncommon feature set includes thermal overload protection and compatibility with various control systems. Their valorous reliability and adaptability provide unrivaled competitive advantages, making them the preferred choice for precise valve control across multiple applications.


Domestic Market, Supply Ability & Sample Policy for Electric Actuators

Our electric actuators are crafted to meet the broad demands of the domestic mar in India, ensuring optimal control and reduced expenditure for industrial customers. With consistent supply ability and competitive list price, our products are delivered promptly across regions. A customer-friendly sample policy allows industrial clients to evaluate actuator suitability before full-scale purchase, streamlining investment decisions and adding tangible value to your automation expenditure.


FAQ's of Electric Actuators:


Q: How do I choose the right electric actuator model for a specific valve application?

A: Selecting the correct electric actuator depends on factors like required torque (10 Nm to 2000 Nm), valve type (ball, butterfly, plug), voltage, control system (on/off or modulating), and connection type. Review your valve size and operating conditions, then match them with the actuator specifications.

Q: What are the main benefits of using these electric actuators in industrial plants?

A: Key benefits include reliable continuous operation (75% duty cycle), robust IP67 waterproof enclosures, corrosion resistance, and versatile control options. These features ensure dependable valve automation and reduced maintenance for water, gas, air, and oil applications.

Q: When is maintenance required for electric actuators and what does the process involve?

A: Routine maintenance is generally minimal due to their enclosed structure and protection features. However, it is advised to inspect actuators periodically for visual wear, proper operation, and timely cleaning of external surfaces for optimal longevity.

Q: Where can these electric actuators be installed within automation systems?

A: Thanks to their ISO 5211 mounting base and compact enclosure, these actuators can be installed on valves in HVAC systems, water treatment plants, and varied automation setups requiring precise flow control.

Q: What protective measures are integrated into the actuator design?

A: The actuators include thermal overload motor protection, limit switches for position feedback, and powder-coated aluminum enclosures to safeguard against harsh environmental factors, ensuring dependable performance in demanding settings.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Other Industrial Valves & Products Category

Piston Valves

Piston Valves

Minimum Order Quantity : 5 Pieces

Valve Type : Inline Piston Valve

Material : Forged Carbon Steel/Cast Steel/ Stainless Steel

Application : Steam, Water, Oil, Gas, Chemicals

Structure : Other, Flanged, Globe Type

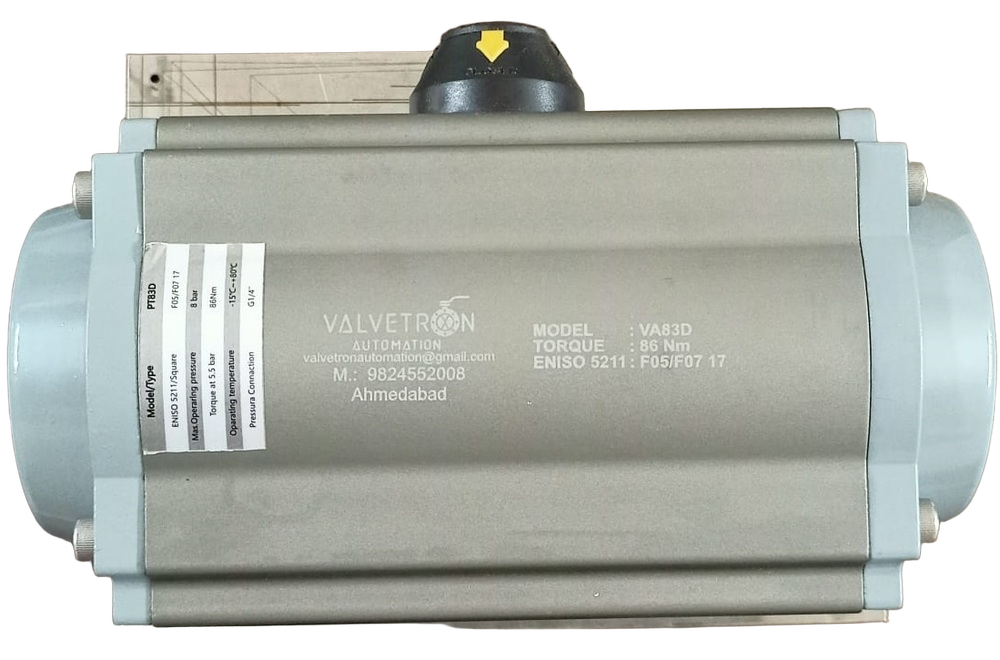

Pneumatic Actuators
